Napoleon Oakdale 1402 Wood Burning Insert

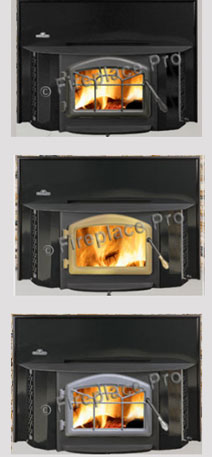

Shown with options
|BTU’s||Heat Output*||High Output (High Burn)**|
|11,400 – 41,300||70,000|
|Firebox Capacity (cu. ft.)||2.25|
|Area Heated (sq. ft.)***||800 – 2,000+|
|Burn Time (Hours)||9|
|Log Size (Max)||18″|
|Emissions(Grams Per Hour)||3.5|
|Mobile Home Approved||No|
|Blower Kit Available||Standard|
|Minimum Fireplace Opening||26″||22″||14″|
|Finished Outside Dimensions if using Cast Iron Surround||53 1/2″||32″||-|
|Weight Of Bricks||145 lbs.|
|Weight Without Bricks||250 lbs.|
|If the stove is to be installed on a combustible floor, it must be placed on an approved non-combustible hearth pad, that extends 8″ (200mm) beyond the stove sides and back, and 18″ (455mm) to the front. Clearances can be reduced with shielding acceptable to local authorities. Reduced installation must comply with NFPA211 or CAN/CSA-B365.|
*EPA (Environmental Protection Agency) rated BTU/h with softwood test fuel (for emissions only) – no refueling.
**Wolf Steel Ltd. own test results showing realistic BTU’s using hardwood logs with regular refueling. Heat output will differ on chimney draft as well as type, moisture content and size of wood.
***Figures may vary with individual conditions such as floor plan layout, insulation value/heat loss of the house, geographical location and firewood used.
|Photo 2||Photo 3|
