1700 Wood Stove by Osburn
1700 Wood Stove
Heat your smaller space with confidence and elegance with the Osburn 1700 wood stove. Select door overlays, leg designs or pedestal in black or brushed nickel finishes to compliment your style. Low emissions of 1.26 g/h yield great savings and optimal heat. Built to last with a cast iron door, high-density bricks, built-in ash pan, and top heat deflector, the 1700 wood stove is a perfect solution for your wood heating.
- Door overlay available in black or brushed nickel
- Base options include legs or pedestal
- Cast iron legs available in traditional or structural (straight) designs
- Legs available in black or brushed nickel finish
- Both pedestal and leg versions include an ash drawer
- 1.9 cubic foot firebox
- Up to 65,000 BTUs
- Outside air intake
- Premium 130 CFM blower optional
- Exceeds EPA 2020 requirements with emissions as low as 1.26 g/hr
Photo 1: Osburn 1700 wood stove shown with black door overlay and black traditional legs
Photo 2: Osburn 1700 wood stove shown with brushed nickel door overlay and black traditional legs
Photo 3: Osburn 1700 wood stove shown with black door overlay and brushed nickel traditional legs
Photo 4: Osburn 1700 wood stove shown with brushed nickel door overlay and brushed nickel traditional legs
Photo 5: Osburn 1700 wood stove shown with black door overlay and black structural (straight) legs
Photo 6: Osburn 1700 wood stove shown with brushed nickel door overlay and black structural (straight) legs
Photo 7: Osburn 1700 wood stove shown with black door overlay and brushed nickel structural (straight) legs
Photo 8: Osburn 1700 wood stove shown with brushed nickel door overlay and brushed nickel structural (straight) legs
Photo 9: Osburn 1700 wood stove shown with black door overlay and pedestal base
Photo 10: Osburn 1700 wood stove shown with brushed nickel door overlay and pedestal base
Osburn 1700 Wood Burning Stove Components and Options
Required Components and Options for the 1700 Wood Burning Stove
Door Overlay (choose one):
Black door overlay
Brushed nickel door overlay
Legs/Pedestal (choose one):
Black cast iron traditional leg kit with ash drawer and safety lid
Brushed nickel cast iron traditional leg kit with ash drawer and safety lid
Black cast iron structural (straight) leg kit with ash drawer
Brushed nickel cast iron structural (straight) leg kit with ash drawer
Pedestal kit
Additional Options for the 1700 Wood Stove
Rigid firescreen
Glass ash lip
130 cfm blower with variable speed control (thermodisc included)
5ӯ air intake kit for wood stove on legs
5ӯ air intake kit for wood stove on pedestal
5”Ø x 4′ insulated flex pipe for fresh air intake kit
Osburn 2000 Wood Burning Stove OB02015 Specifications
1700 Wood Stove – OB01700
| Overall Appliance Width: | 24-7/8″ |
| Overall Appliance Height: | 30-3/8″ |
| Overall Appliance Depth: | 23-1/4″ |
| Viewing Area: | 15-3/4″ x 9-3/8″ |
| Recommended Heating Area*: | 500 – 1,800 sq. ft. |
| Maximum Burn Time*: | 6 hours |
| Maximum Log Length: | 18″ Over Width |
*Recommended heating area and maximum burn time may vary subject to location in home, chimney draft,heat loss factors, climate, fuel type and other variables. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature in the designated area in case of a power failure.

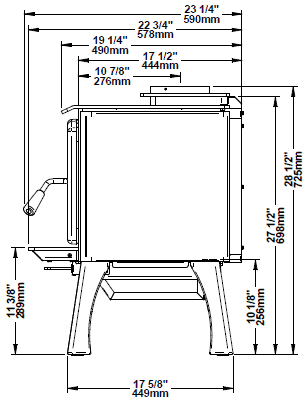

Side View

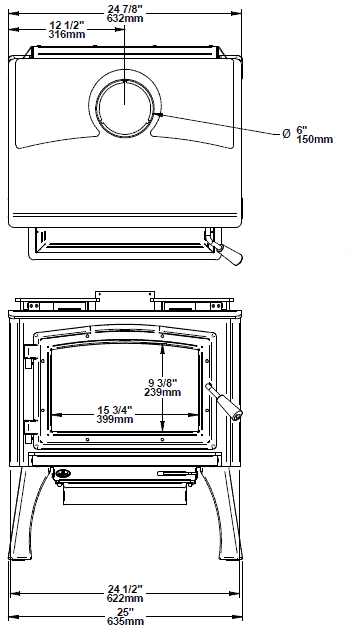

Front view
Top view
