1700 Wood Fireplace Insert by Osburn
1700 Wood Insert
Perfectly sized for warmth and enjoyment, the Osburn 1700 wood fireplace insert gives you several options for customized looks while remaining eco-friendly with extra low emissions at 1.26 g/h. Discover different looks with door overlays and faceplate trims available in black and brushed nickel. Two faceplate kits increase your installation options. Top quality materials and construction ensure years of reliability: high-density bricks, cast iron door and quiet blower for increased durability.
- Door overlay and faceplate trims available in black or brushed nickel
- Two faceplate options: 44″ x 29″ and 50″ x 32″
- 1.9 cubic foot firebox
- Up to 65,000 BTUs
- Outside air intake
- Premium 144 CFM blower included
- Meets EPA 2020 requirements with emissions as low as 1.26 g/hr
Photo 1: Osburn 1700 wood insert with black door overlay, black faceplate trim, and 44″ W x 29″ H faceplate
Photo 2: Osburn 1700 wood insert with brushed nickel door overlay, black faceplate trim, and 44″ W x 29″ H faceplate
Photo 3: Osburn 1700 wood insert with black door overlay, brushed nickel faceplate trim, and 44″ W x 29″ H faceplate
Photo 4: Osburn 1700 wood insert with brushed nickel door overlay, brushed nickel faceplate trim, and 44″ W x 29″ H faceplate
Photo 5: Osburn 1700 wood insert with black door overlay, black faceplate trim, and 50″ W x 32″ H faceplate
Photo 6: Osburn 1700 wood insert with brushed nickel door overlay, black faceplate trim, and 50″ W x 32″ H faceplate
Photo 7: Osburn 1700 wood insert with black door overlay, brushed nickel faceplate trim, and 50″ W x 32″ H faceplate
Photo 8: Osburn 1700 wood insert with brushed nickel door overlay, brushed nickel faceplate trim, and 50″ W x 32″ H faceplate
Osburn 1700 Wood Insert Components and Options
Required Components and Options for the 1700 Wood Burning Insert
Door Overlay (choose one):
Black door overlay
Brushed nickel door overlay
Faceplate (choose one):
Faceplate kit 44″ x 29″
Large faceplate kit 50″ x 32″
Faceplate Trim (choose one):
Black faceplate trims 44″ x 29″ or 50″ x 32″
Brushed nickel faceplate trims 44″ x 29″ or 50″ x 32″
Additional Options for the 1700 Insert
Rigid firescreen
5ӯ fresh air intake kit oval
5″Ø fresh air intake register with airtight damper
5”Ø x 4′ insulated flex pipe for fresh air intake kit

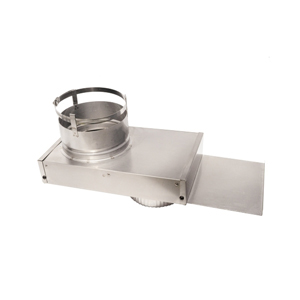

Offset liner adaptor
Flex liner kits
Osburn 1700 Wood Burning Insert OB01705 Specifications
1700 Wood Insert – OB01705
| Overall Appliance Width: | 27-1/8″ |
| Overall Appliance Height: | 21-1/4″ |
| Overall Appliance Depth: | 22-3/8″ |
| Minimum Fireplace Opening Width: | 27-1/2″ |
| Minimum Fireplace Opening Height: | 21-1/2″ |
| Minimum Fireplace Opening Depth: | 12-7/8″ |
| Viewing Area: | 15-3/4″ x 9-3/8″ |
| Recommended Heating Area*: | 500 – 1,800 sq. ft. |
| Maximum Burn Time*: | 6 hours |
| Maximum Log Length: | 18″ Over Width |
*Recommended heating area and maximum burn time may vary subject to location in home, chimney draft,heat loss factors, climate, fuel type and other variables. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature in the designated area in case of a power failure.
Front view
Top view
Side view
Side view with faceplate extension
