Majestic Echelon II See-Through Linear Gas Fireplace

The Echolon II See-Through’s contemporary linear style creates a unique look in not just one, but two rooms. The LED lit glass firebed sparkles with brilliance and may be customized to create the atmosphere you desire. Get lost in the flames and relax in the warmth and ambiance.

Add reflective black glass panels, colored glass firebed, natural stones, or driftwood logs for a custom interior
Select two fronts: a clean face or picture frame front, mix or match for a distinct look in each room
Illuminate the interior glass firebed with dimmable LED lighting
Direct warmth to additional areas of your home with optional heat distribution systems
IntelliFire™ Ignition System with wall switch constantly monitors ignition and ensures safe functioning
Available in 36″ or 48″ wide
Similar to Heat & Glo Mezzo See-Through and Heatilator Crave See-Through fireplaces

Click Here For Quote

Echelon II See-Through Gas Fireplace Features and Options

Required Options for the Echelon See-Through Fireplace

1) Must choose non-operable front (2 required):

Echelon II Clean Face Front for 36″ and 48″ models. 3 finish options.

Finish options for fronts: black, gun metal, new bronze

Echelon II Picture frame front for 36″, 48″, and 60″ models available in black finish

Additional Features and Accessories of the Echelon See-Through Fireplace

Heat Zone: Draw heat from your fireplace to another room in your home, up to 20 feet away.

Passive Heat: Disperse heat naturally (no fan), allows TV 12″ above fireplace without a mantel.

Heat Out: Draw heat from your fireplace and direct it outside, up to 25 feet away.

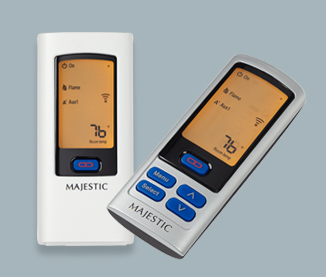

IntelliFire™ Touch RC400 Touchscreen Remote Control (Standard)

IntelliFire Touch Wireless Wall Switch RC150 (Option)

Battery Backup Wall Switch for IntelliFire Touch (Option)

Interior Media Options

Onyx Glass, Sapphire Glass, Bronze Glass, Diamond Glass, Stones, and Driftwood Logs

Reflective Black Glass Interior (Option)

Echelon II See-Through Gas Fireplace Specifications

Echelon II See-Through 36 Rev C – ECHEL36STIN-C

Appliance Width:	46-3/16″
Appliance Height:	41-3/4″
Appliance Depth¹:	17-1/8″
Appliance Rear Width:	46-3/16″
Framing Height:	42″
Framing Depth²:	17″
Framing Front Width:	48-1/4″
Framing Back Width:	48-1/4″
Fuel Type:	Natural gas or liquid propane by conversion
BTU/hr Input:	30,000 (NG); 27,000 (LP)
Heating Capacity²:	Up to 900 sq ft
Viewing Area:	35-1/2″ x 12-1/2″
Ignition System:	IntelliFire Plus

Same specifications as Heat & Glo MEZZO36ST-C and Heatilator CRAVE4836ST-C

Echelon II See-Through 48 Rev C – ECHEL48STIN-C

Appliance Width:	58″
Appliance Height:	41-3/4″
Appliance Depth¹:	17-1/8″
Appliance Rear Width:	58″
Framing Height:	42″
Framing Depth²:	17″
Framing Front Width:	60-1/4″
Framing Back Width:	60-1/4″
Fuel Type:	Natural gas or liquid propane by conversion
BTU/hr Input:	40,000 (NG); 34,000 (LP)
Heating Capacity²:	Up to 1,300 sq ft
Viewing Area:	47-1/2″ x 12-1/2″
Ignition System:	IntelliFire Plus

Same specifications as Heat & Glo MEZZO48ST-C and Heatilator CRAVE6048ST-C

¹ Appliance Depth includes entire unit including depth of firebox and extension onto hearth.

² This is a general guide, heating capacity may vary based on climate, home efficiency, location of the heater, and air movement in the room.

Heat output will vary depending on the type of fuel used. The flame and ember appearance may vary based on the type of fuel burned and the venting configuration used. Actual product appearance, including flame may differ from image shown. Refer to the owner’s manual for complete clearance requirements and specifications. Product specifications and pricing subject to change without notice. For testing and listing information please refer to the owner’s/installation manual.
